3-BAND INLINE REPEATER (all European providers) - Calls 4G and 5G mobile internet (20.000 m²)
3-BAND INLINE REPEATER (all European providers) - Calls 4G and 5G mobile internet (20.000 m²)
- Da collegare a un Ripetitore GSM, per grandi impianti
- Senza interferenze. Certificato CE!
- Copertura max. 20.000 MQ

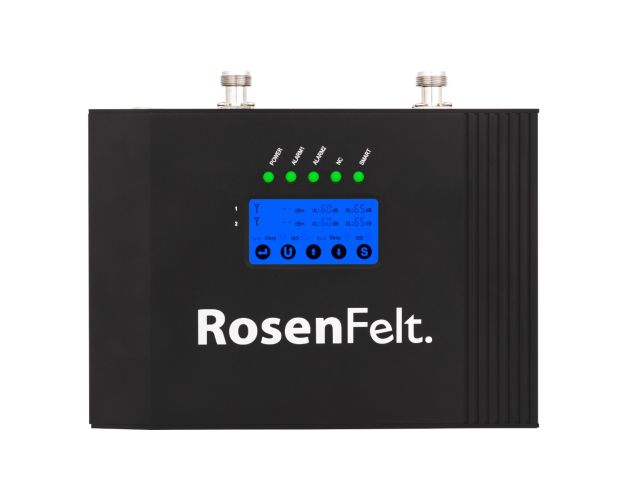

This 3-band Inline repeater, very powerfull, has been specially designed for installation in large venues such as: office buildings, hotels, exhibition halls, sports venues, conference halls, underground parks, warehouses, hospitals... This device completes any of our GSM and 4G repeaters and allows deployment of an extra line of 1 to 10 indoor antennas (depending on cabling configuration) allowing a total coverage worth 2000 sqm, per inline repeater.
Extremely flexible solution to deploy, several inline repeaters can be connected after a single GSM 4G repeater in order to create a very large system composed of multiple indoor antennas.
Please contact us for details and assistance on this 3-band 700+800+900 MHz inline repeater Rosenfelt RF ZLE20L-T. We are happy to assist further.
PLEASE UPDATE INFORMATION FOR YOUR COUNTRY / OWN MARKET
| Specifiche: |
Suitable for 5G 700 MHz and 4G Network 800 MHz and 2G 900 MHz PLEASE UPDATE INFORMATION FOR YOUR COUNTRY / OWN MARKET |
|---|---|
| Area di copertura: |
up to 2.000 sqm. PLEASE UPDATE INFORMATION FOR YOUR COUNTRY / OWN WEBSITE |
| Gain Up: | 65 dB (uplink 703 - 733 // 832 - 862 // 880 - 915 MHz) |
| Gain down: | 70 dB (downlink 758 - 788 // 791 - 821 // 925 - 960 MHz) |
| Potenza: |
20dBm |
| Tensione: | AC 100 ~ 240 V, 50/60 Hz, DC Adapter 12V 5A |
| Dimensioni: | 210 x 145 x 45 mm |
| Lunghezza d'onda MHz: | 700, 800, 900 |
